Location: Tulane University, New Orleans, Louisiana
Date: 2013
Materials: Wood Lathe, Stainless Steel Bolts
Tools: Rhino, Grasshopper, Kangaroo
Dimensions: 35′ x 35′ x 7′

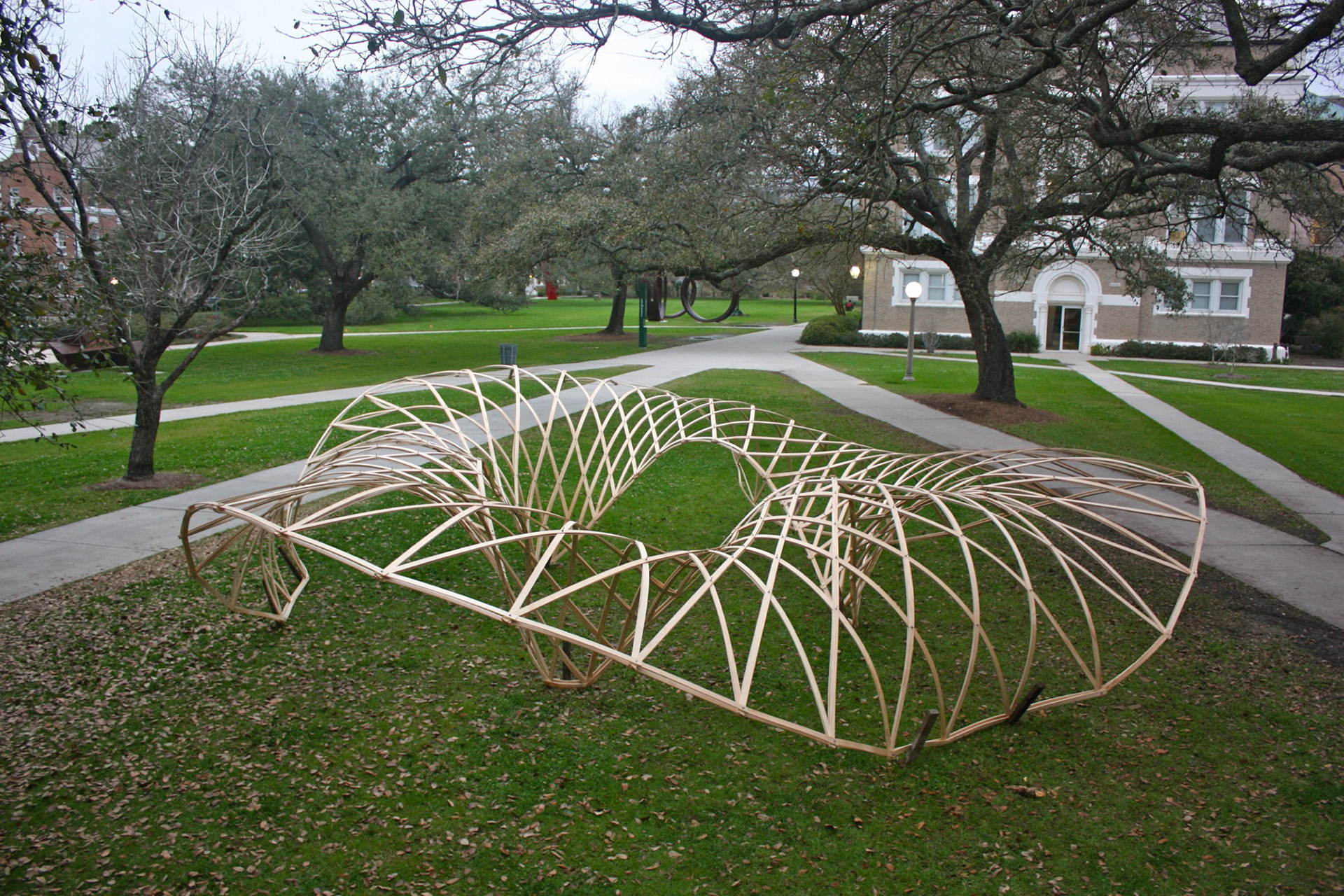

Project Description
This project was developed during a fast-paced 3-day workshop with students at Tulane University. Building on the earlier gridshell research conducted during the SmartGeometry 2012 workshop, this grid shell attempted to improve on various aspects of the earlier prototype. In an effort to both increase fabrication speed while decreasing material waste, the parametric model integrated more material feedback and analysis. First, the model would warn the user if the timber member length exceeded the available timber members in order to eliminate the need for splicing members together. Second, the model would produce warnings whenever the maximum bending radius was exceeded, assuring that the surface curvature was producible at full scale. Third, the edge beam members were doubled to increase the overal stiffness of the beam.
Initial Parametric Modeling and Workshop Instructor: Andrew Kudless
Design, Fabrication, and Assembly: Charles Boyne, Jack Waterman, Kyle Graham, Sam Naylor, Sarah Cumming, Dennis Palmadessa, Elizabeth Kovacevic, Lauren Evans

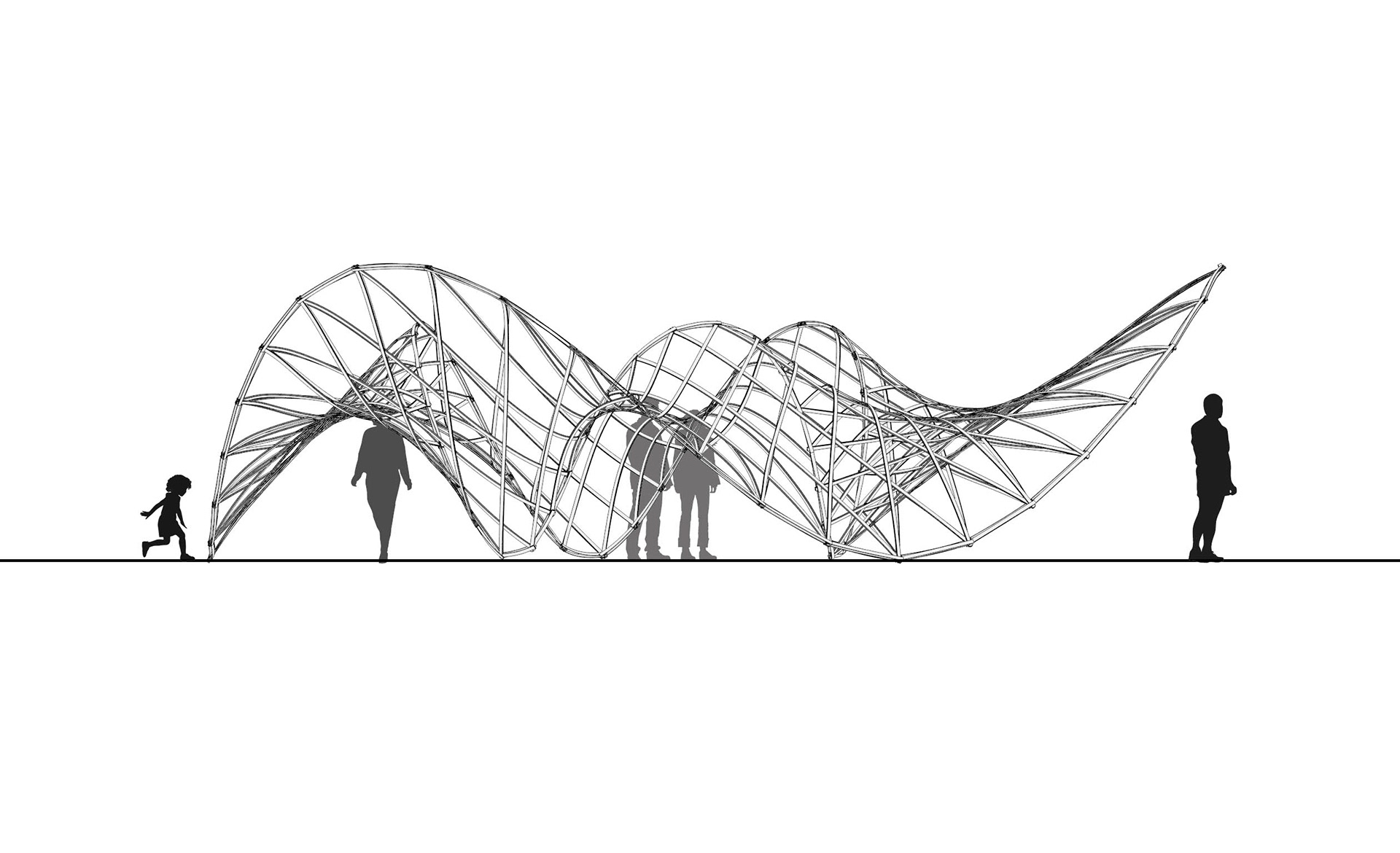

plan view render
playing with intensity of gravity in kangaroo physics

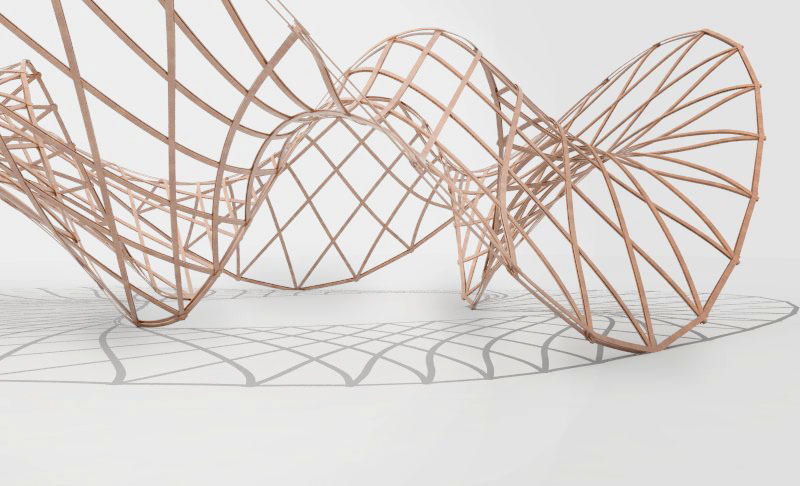

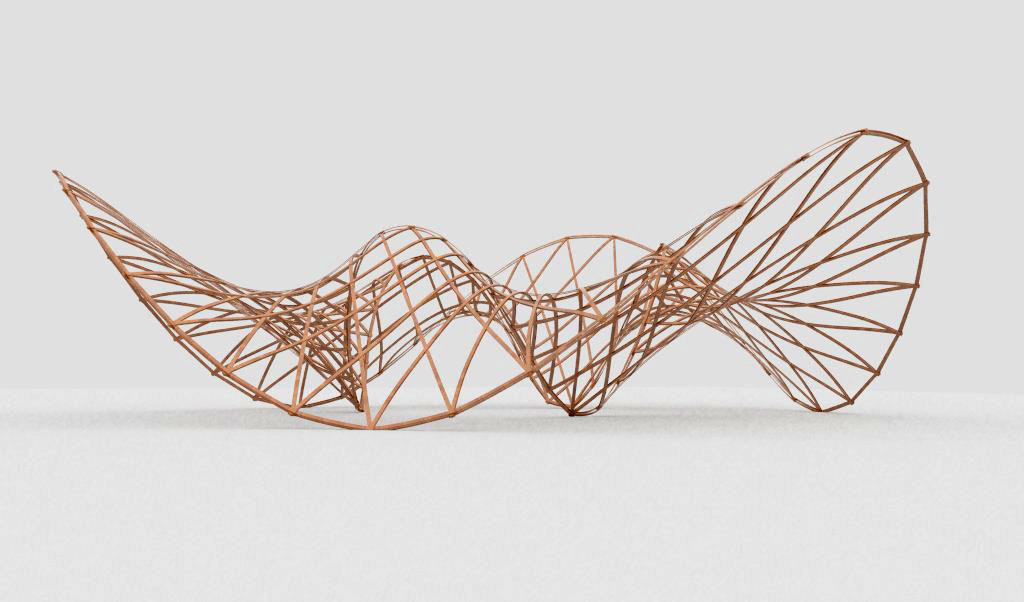

final gridshell model
real time changes in form when parameters in grasshopper are changed
3d Modeling with Grasshopper + Kangaroo Physics

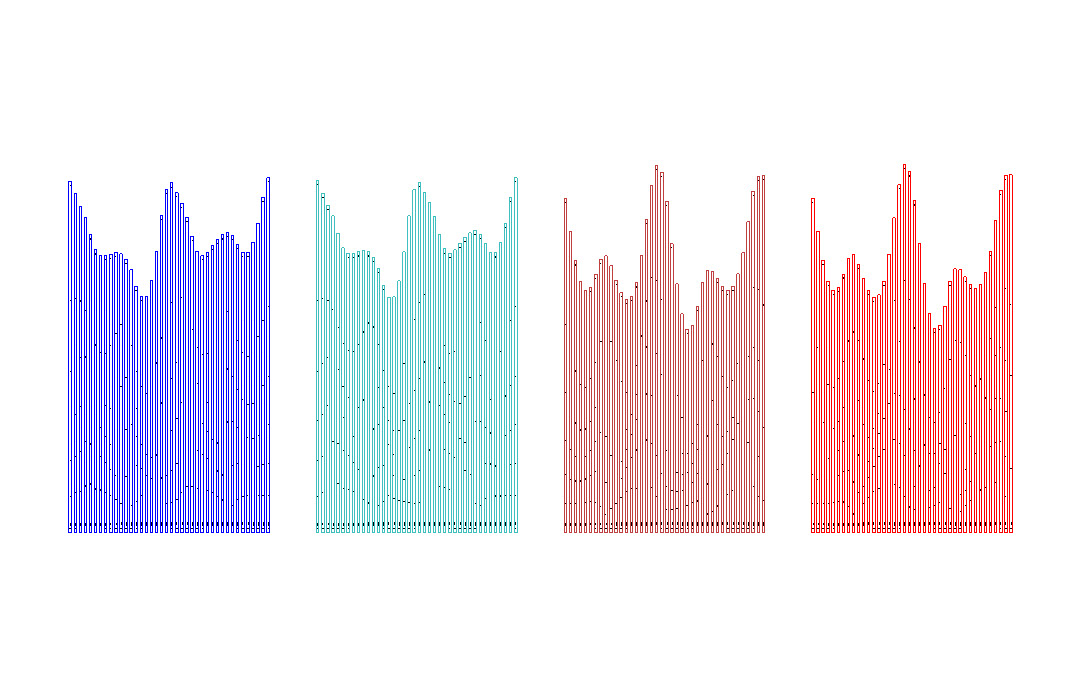

curvature analysis of smallest bending radii in structure
example of 2d lath layout

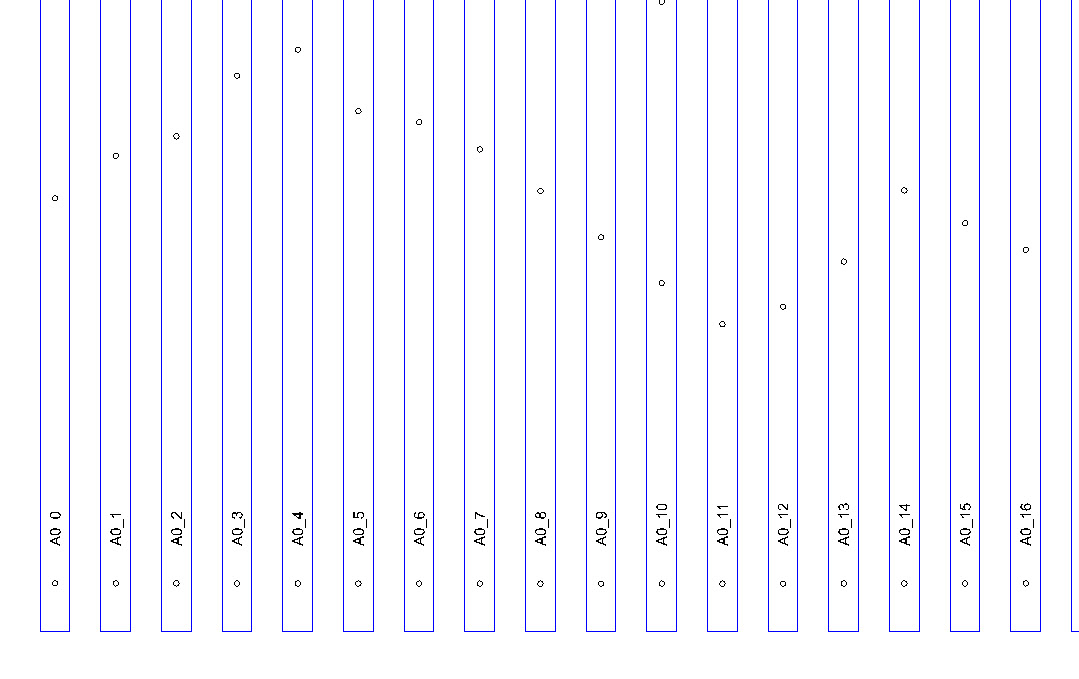

detail of 2d lath layout
